2018 Tuya New mini desgin 15A ESP8233 Relay wi-fi plug Smart japan power socket

FOB Reference Price:Get Latest Price
$6.50 - $7.50 / Piece | 100 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 2000 Pieces)
Customized packaging (Min. Order: 2000 Pieces)
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Nanxin or Your Brand
Model Number:
NX-SM300
Type:
Plug with Socket
Grounding:
standard Grounding
Rated Voltage:
AC100-125V
Rated Current:
15A
Application:
Residential / General-Purpose
Color:
White
Product name:
wi-fi plug Smart japan power socket
Certificate:
PSE/TELEC Approved
Function:
Overload Protection
Feature:
Plug work with Alexa
Material:
ABS+Copper
Usage:
Home Applicance
Standard:
Japan Standard
Warranty:
1 year
Item Name:
japan power socket
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Vacuum packing inside and cartons outside
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 20 To be negotiated
Product Description

2018 Tuya New mini desgin 15A ESP8233 Relay wi-fi plug Smart japan power socket


Product name
japan power socket
Input voltage
AC100~125V
Input frequency
50Hz/60Hz
Max load current
15A
Max Power
1500W
Radio Technology
IEEE 802.11 B/G/N (HT20)
WiFi frequency
2.4GHz
Working&Storage temperature
Operating:0℃-40℃RH≤80%

Storage :-20℃-70℃RH≤80%
Protection
Overload protection:1500W 15.5A 30S
Shell Material
Flame retarding V0 class ABS+PC
Indicator light
1 Red LED+1 Blue LED
Certified
PSE/TELEC
App support
ISO 8.0 or Android 4.1 or higher
Product Size(mm)
75*30*52
Net weight
60g

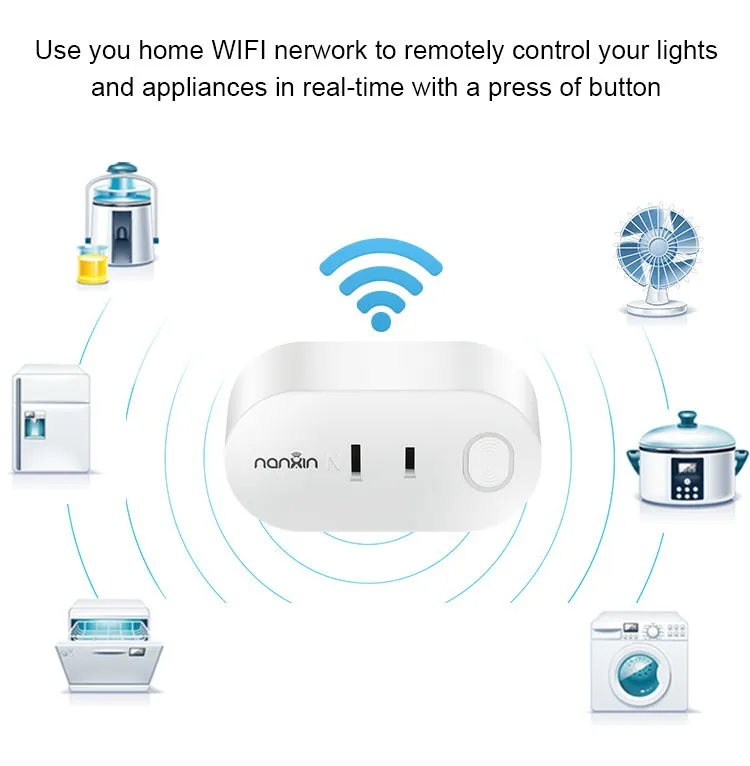

Features of Japan power socket


1. Compact design

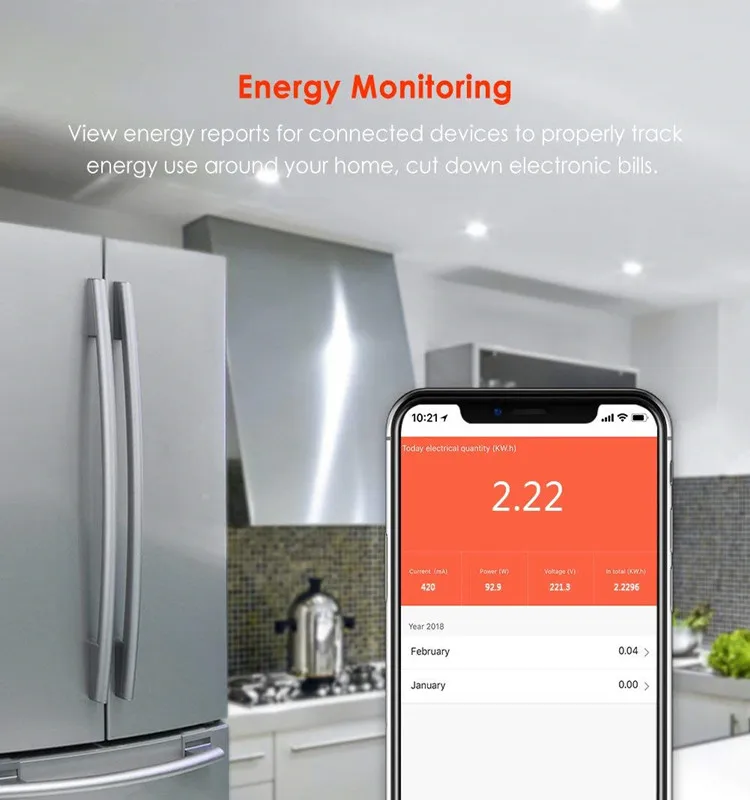

2. Switch / timing / delay / power statistics / real-time voltage, current, power consumption

3. WiFi enabled

4. Support Amazon Alexa, Google Home, IFTTT

5.Support shared device / scene mode / remote upgrade.

6.  Software overload protection; Hardware 16A250V specification for slow breaking resistor /561V specification varistor


Tests of smart wifi power plug

Plugged test /5000 times;

Drop test /1.2 meters, 3 sides 6 times;


Key life test /20N, 5000 times;

Temperature rise test /15A, 1H;

Overload protection test /as per specification;

Withstand voltage test /3750V, AC voltage 1 minutes, leakage current less than 0.25mA


Click Here to  Get  a Free Sample !

Detailed Images

Send Inquiry, please click here.

Certifications
Packing & Delivery
Our Service

1. Manufacturing and supplying japan power socket.

2. Help customers arrange shipping and consolidating the goods

3. OEM/ODM service available

4. Provide online training and technology support through Mail, Phone, Whats app, Skype etc.

5. The Buyer is guaranteed to get the response within 24 hours upon receipt the inquiry.

6.1 year Warranty , free reparing and change parts OEM services. can print different front panel and logo as customer required Free Android and IOS app for control WIFI smart home system


FAQ

1. What devices can I control with the mini smart plug?

You can control lights, fans, portable heaters, and any small appliances in accordance with the mini smart plug's specifications.

2. What should I do when I can not turn mini smart plug on or off?

*Make sure your mobile devices and the Mini smart Plug are connected to the same Wifi network.

*Make sure the devices connected to the mini smart plug are turned on.

3.What should I do when device configuration process has failed?

You should:

*Check whether the Mini Smart plug us powered on or not.

*Check whether your mobile device is connected to 2.4GHz Wi-Fi net work.

*Check your network connectivity. Make sure the router is working properly:

If the router is dual-band router, select 2.4G network and then add mini smart plug.

Enable the router's broadcasting function.

Configure the encryption method as WPA2-PSK and authorization type as AES, or set both as auto.

Wireless mode can not be 11n only.

Check for wi-Fi interference or relocate the Mini Smart Plug to another location within the signal range.

Check wheather the router's connected devices reach the amount limit. Please try to turn off some devices' Wi-Fi function and configure Mini Smart Plug again.

Check if router's wireless MAC filtering function is enabled.Remove the device from filter list and make sure the router is not prohibiting Mini Smart Plug from connection.

Make Sure the password of your Wi-Fi network entered in App is correct when adding.

Make sure the mini smart plug is ready for App-config:the indicator light is quick blinking blue (twice per second ) for quick mode configuration, slow blink blue (once every 3 seconds) for AP mode configuration.

Repeat the App-config process.

Factory reset the mini smart plug and try to add it again.


4. How can I share my device with family?

Open App, go to "Profile"->"Device Sharing"->"sent", tap "Add Sharing", now you can share the device with added family members.

For more Information, please click Here!
