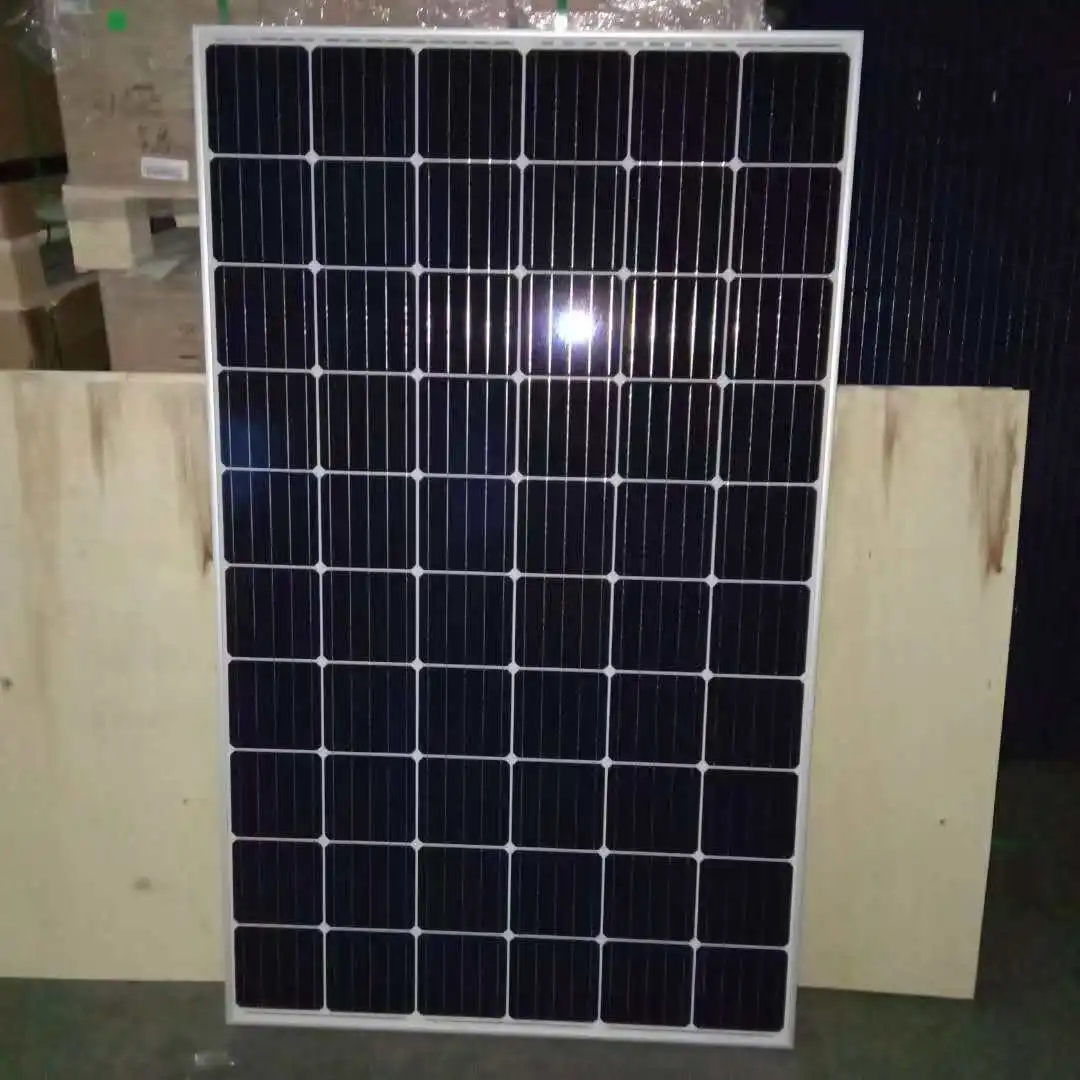

Taiwan brand Motech solar panels 300W 305W monocrystalline in stock

FOB Reference Price:Get Latest Price
$0.21 - $0.22 / Watt | 1000 Watt/Watts (Min. Order)
Material:
Monocrystalline Silicon
Max. Power:
300W
Number of Cells:
60 (6*10)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Motech
Model Number:
XS60CB-305
Size:
1640*992*35mm
Product name:
Motech solar panels 300W
Weight:
18kg
Cell type:
5BB mono solar cell 156.75*156.75mm
Front cover:
3.2mm thickness, high transmission tempered glass
Back sheet:
white TPT
Junction Box:
IP67 or IP68 rated
Connector:
MC4 Compatible Connector
Cable:
900 mm length
Power Tolerance:
0~+3%
Warranty:
10 Years Workmanship
Type:
Standard Solar Panel
Supply Ability
Supply Ability:
15000 Piece/Pieces per Month Motech solar panels 300W
Packaging & Delivery
Packaging Details
Motech solar panels 300W
30pcs/pallet, 360pcs/20'GP, 840pcs/40'HQ
Port
Shanghai
Product Details
Mechanical Data
Model
XS60CB-305
Solar Cells
monocrystalline 156.75*156.75 mm
Dimension
1640*992*35 mm
Weight
18.2 kg
Glass
3.2mm thickness, high transmission, AR coated tempered glass
Backsheet
white TPT
Frame
silver anodized aluminum alloy
Junction Box
IP67 or IP68 Rated
Cables
4.0mm², 900mm length
Connector
MC4

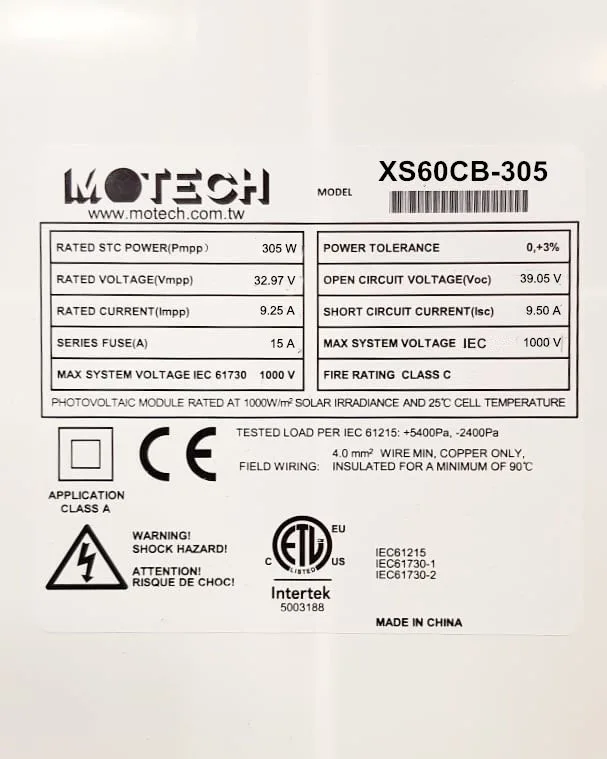

Electrical Data at STC
Model
XS60CB-300
XS60CB-305
XS60CB-310
Peak Power Watts-Pmax (W)
300
305
310
Maximum power voltage- Vmp (V)
32.68
32.97
33.26
Maximum power current- Imp (A)
9.18
9.25
9.32
Open circuit voltage- Voc (V)
38.91
39.05
39.19
Short circuit current- Isc (A)
9.47
9.50
9.53
Module efficiency (%)
18.3
18.6
18.9
Power output tolerance (%)
0 ~+5
Temperature Ratings
NOCT (Nominal Operating Cell Temperature)
45℃±2℃
Temperature Coefficient of pmax
-0.41%/℃
Temperature Coefficient of Voc
-0.33%/℃
Temperature Coefficient of Isc
0.06%/℃
Maximum Ratings
Operational Temperature
-40 ~+85℃
Maximum system voltage
1000V DC
Max series fuse rating
15A
Product Introduction
Product Details Show

tempered glass

- Low iron tempered embossed glass.
- 3.2mm thickness, enhance the impact resistance of modules.
- Self- cleaning function.
- The bending strength is 3-5 times that of ordinary glass.

EVA film

- Enhance the light transmission of the components.
- The cells are packaged to prevent the external environment from affecting the electrical performance of the cells.
- Bonding solar cells, tempered glass, TPT together, with a certain bond strength.

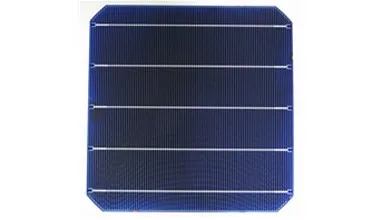

solar cell

- High efficiency solar cell more than 20%.
- High-precision screen printing to ensure accurate grid position for automatic soldering and laser cutting.
- No color difference, outstanding appearance.

TPT back sheet

- High pressure resistance and high insulation.
- Shockproof and can effectively protect the cells from breaking.
- Good weather resistance, UV-resistant aging ≥25 years.

Aluminum Alloy Frame

- Silver and black color frame are optional.
- Strong corrosion and oxidation resistance.
- Strong strength and firmness.
- Easy to transport and install, even if the surface is scratched, it will not oxidize and will not affect performance.

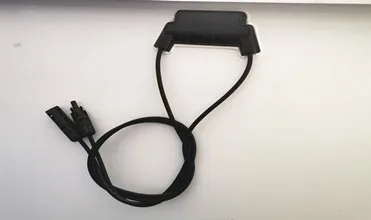

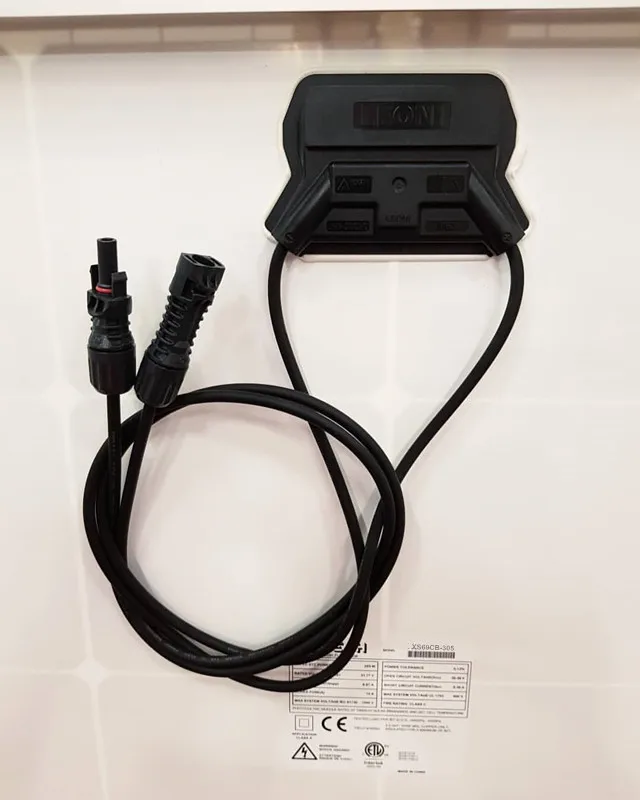

Junction box

- 2 to 6 terminal blocks can be set as needed.
- All connection methods are connected by quick plug-in.
- The shell is made of imported high-grade raw materials and has high anti-aging and UV resistance.
- IP67 rate protection level.

Product Processing

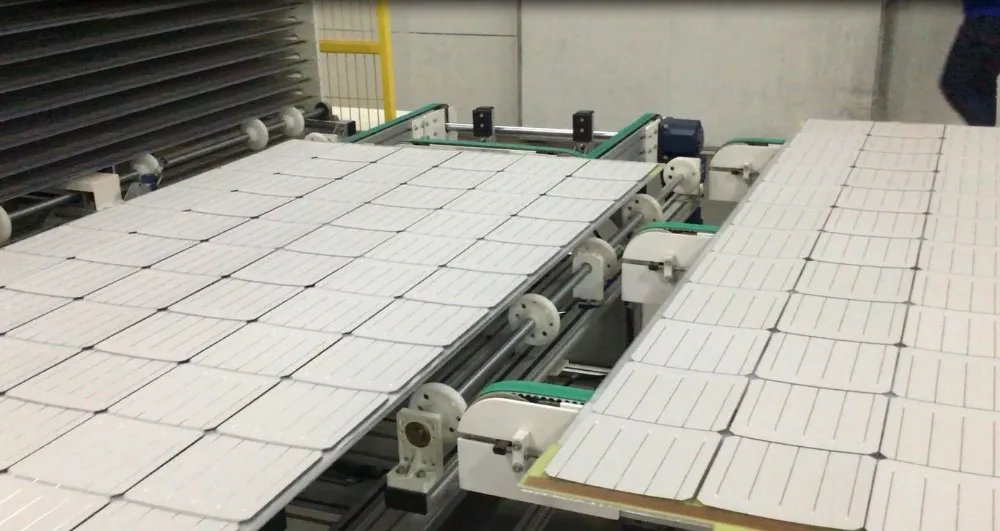

solar cell welding
backside soldering

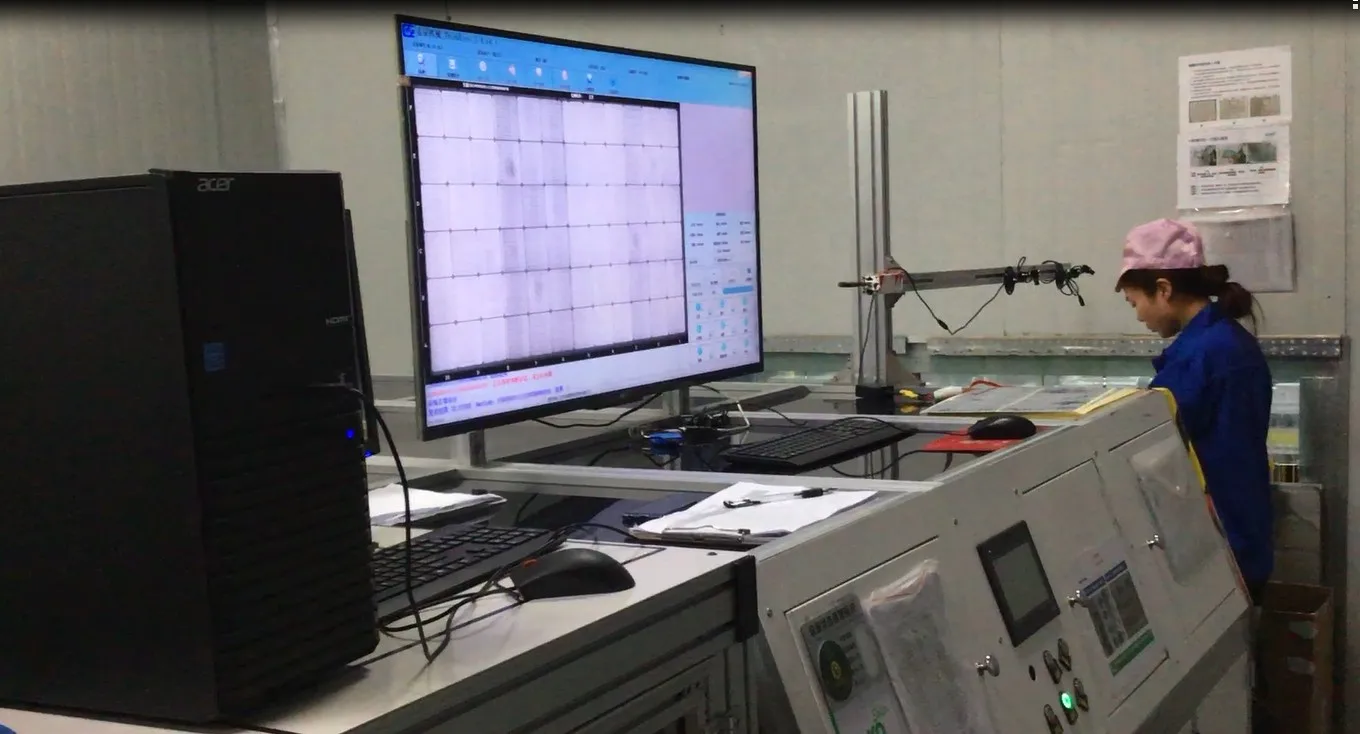

EL test

laying and lamination

remove the burrs and install frame

welding the junction box

EL test

cleaning

packing

Related Products

OEM brand mono solar panel 360W

JA half cell mono solar panel 360W

Risen poly solar panel 335W
Solar project

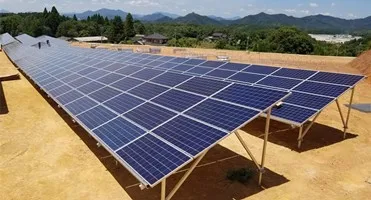

1.5MW solar power project in ayabe, Japan.

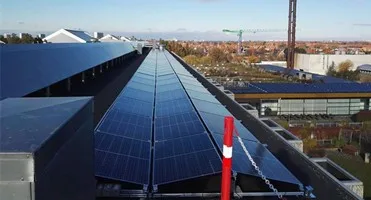

1.5MW on grid solar power project in Hvidovre, Denmark.

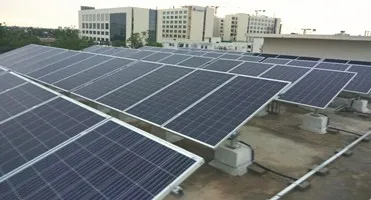

140KW on grid solar power plant in Mumbai, India.

60KW on grid solar project in Bangalore, India.

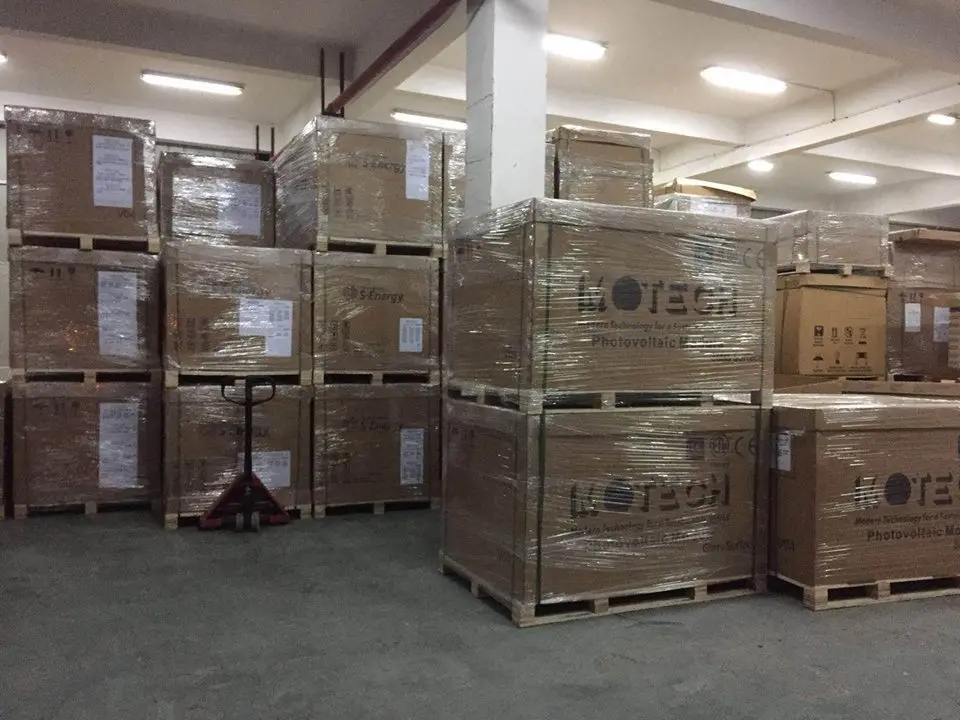

Packing & Shipping
Solar panel type
pieces per pallet
pieces/20' container
pieces/40' container
60 cells solar panel
30
360
840
72 cells solar panel
27
270
648
